Metric Motor, 10 HP, 3, 540 RPM, 230/460V MPN:TCA7P51AE211GAA009
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8662261

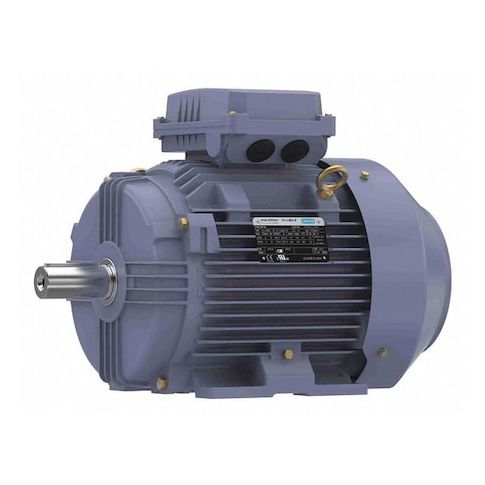

Metric Motor, 10 HP, 3, 540 RPM, 230/460V
This 10 HP, three-phase motor from Marathon is designed for heavy-duty applications, featuring a totally enclosed fan cooled enclosure and rigid base mounting for stability and reliability. Its high efficiency and continuous duty rating make it suitable for demanding industrial environments, such as manufacturing, processing, and material handling facilities. The motor's cast iron frame and ball bearings ensure durability and long lifespan, while its compact size and CE/UL recognition make it a versatile option for a wide range of applications, including pumps, conveyor systems, and machinery.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan Cooled Motor Enclosure Design
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pumps and Compressors
- Industrial Laundry Machines
- Air Compressors and Vacuum Pumps
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, 7.5 kW, Nameplate RPM 3,540, Frame 132S, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 23.8/11.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CE, UL Recognized
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.60
- Package Width: 13.00
- Package Height: 17.50
- Package Weight: 187.40
Product info last updated on February 2, 2026 8:04pm UTC
Category: Motors
