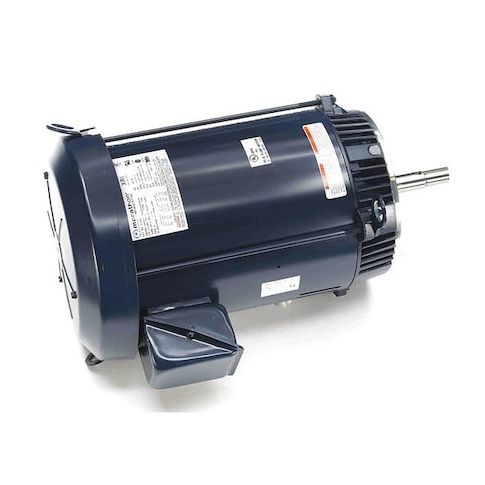

Close-Coupled Pump Motor, 15 HP, 3525 rpm MPN:215TTDBD6007
Close-Coupled Pump Motor, 15 HP, 3525 rpm
The Marathon Close-Coupled Pump Motor is a reliable and efficient solution for a wide range of applications, including water treatment, chemical processing, and HVAC systems. With its 15 HP rating and 3525 rpm speed, this motor provides the necessary power to drive pumps in demanding environments. The close-coupled design allows for easy maintenance and reduced vibration, while the inverter-rated motor ensures smooth operation and extended lifespan. Suitable for continuous duty cycles, this motor is ideal for applications where reliability and efficiency are crucial, including water treatment plants, chemical processing facilities, and HVAC systems.
Top product features:
- Three-phase motor design
- Inverter rated for 10:1 variable torque and 2:1 constant torque
- Ball bearings for motor
Top product applications:
- Pump
- Motor Application
- Industrial
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JM, Hz 60 Hz, Full Load Amps 36.0/18.0, Height 11 in, HP 15, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 15 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 17.20
- Package Height: 15.00
- Package Weight: 124.00
Product info last updated on February 26, 2026 3:42pm UTC
Category: Motors
