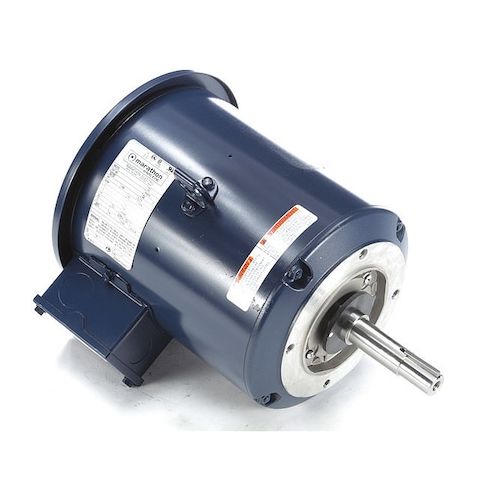

Close-Coupled Pump Motor, 5 HP, 3500 rpm MPN:182TTDW17008
Close-Coupled Pump Motor, 5 HP, 3500 rpm
The Marathon Close-Coupled Pump Motor is a reliable and efficient solution for a wide range of applications, including continuous duty cycles. This 5 HP motor operates at 3500 rpm and features a NEMA Premium Efficient design for reduced energy consumption. With a durable ball bearing design and a maximum ambient temperature of 40°C, this motor is built to withstand demanding conditions. Its compact size and exterior conduit box location make it ideal for applications where space is limited. Suitable for use in industrial settings, this motor is a cost-effective and reliable choice for pump applications.
Top product features:
- Three-phase design
- NEMA Premium Efficient motor efficiency group
- Includes drip cover
Top product applications:
- Pump
- Motor Application
- Inverter Rated No
Close-Coupled Pump Motor, Bolt Circle Dia. 6 1/2 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 182JMV, Hz 60/50, Full Load Amps 13.6-12.4/6.2, Full Load Amps @ 50Hz 13.6-12.4/6.2, HP 5, HP @ 50Hz 5, Includes Drip Cover, Ins. Class F, Inverter Rated No, Length Less Shaft 10 11/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.60
- Package Height: 14.10
- Package Weight: 63.00
Product info last updated on February 1, 2026 9:37pm UTC
Category: Motors
