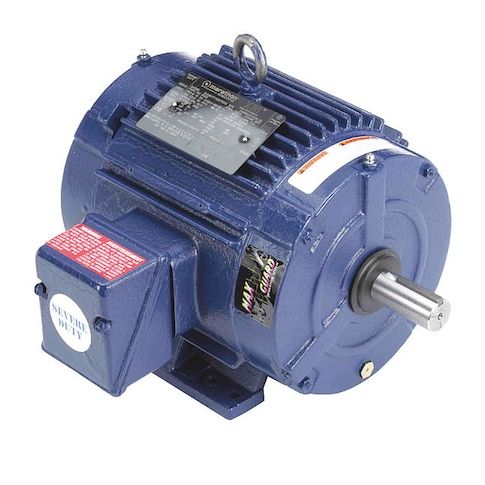

Three-Phase Severe Duty Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3518 rpm Nameplate RPM MPN:215TTFCD6807
Three-Phase Severe Duty Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3518 rpm Nameplate RPM
The Marathon 10 HP Three-Phase Severe Duty Motor is designed for continuous operation in demanding industrial environments. Its totally enclosed fan-cooled design and cast iron frame ensure reliable performance in temperatures up to 40°C. With a nameplate RPM of 3518 and a service factor of 1.15, this motor is ideal for applications requiring high torque and efficiency, such as pumps, fans, and compressors. Its 90.2% nominal efficiency and CE, CSA, and UL listings make it a trusted choice for industries including manufacturing, oil and gas, and water treatment.
Top product features:
- Three-Phase operation allows for efficient and reliable power transmission.
- Totally Enclosed Fan Cooled design provides a safe and durable motor enclosure.
- Ball Bearings ensure smooth and quiet motor operation.
Top product applications:
- Manufacturing processes
- Heavy-duty pumping systems
- Industrial machinery applications
Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3518 rpm, Frame 215T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.6/11.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.50
- Package Width: 17.00
- Package Height: 17.00
- Package Weight: 164.00
Product info last updated on February 5, 2026 8:47pm UTC
Category: Motors
