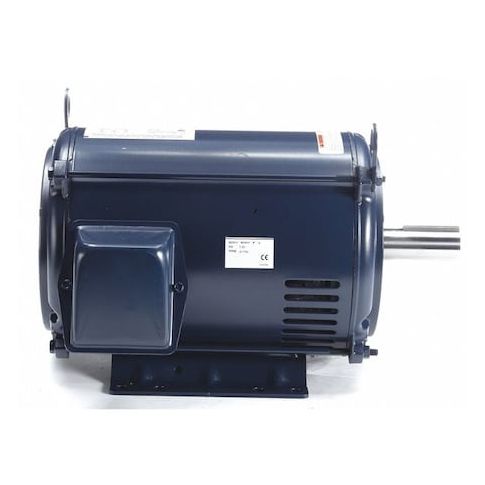

Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1, 765 Nameplate RPM MPN:213TTDWD16060
Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1, 765 Nameplate RPM
This 7 1/2 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial processes, commercial equipment, and large machinery. Its 213T frame and 230/460V AC voltage rating make it suitable for use in various environments. The motor's 1,765 nameplate RPM and continuous duty rating ensure reliable operation, while its 91% nominal efficiency reduces energy costs. The rigid base motor mounting type and ball bearings provide added stability and durability. With its compact design and high-performance capabilities, this motor is ideal for use in factories, warehouses, and other industrial settings.
Top product features:
- Three-phase operation for efficient power usage
- Open drip-proof motor enclosure design for protection against dust and moisture
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pump applications in water treatment and irrigation systems
- Industrial conveyor systems
- Centrifugal compressors for oil and gas applications
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1,765, Frame 213T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 20.0/10.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 1,701-1,800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 17.50
- Package Height: 15.00
- Package Weight: 120.00
