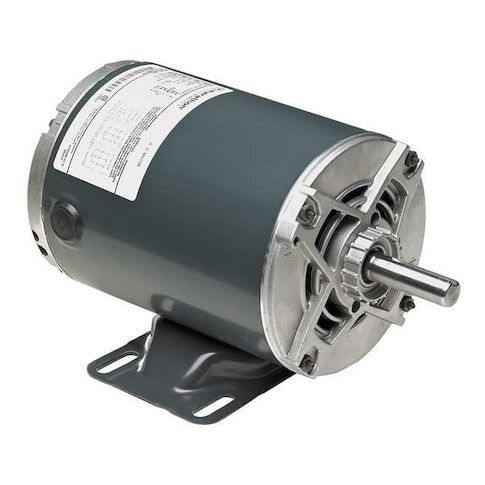

Three-Phase General Purpose Motor, 20 HP, 256T Frame, 200V AC Voltage, 1, 770 Nameplate RPM MPN:256TTDBD6039
Three-Phase General Purpose Motor, 20 HP, 256T Frame, 200V AC Voltage, 1, 770 Nameplate RPM
This 20 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial processes, manufacturing, and commercial settings. Its 256T frame and 200V AC voltage make it suitable for use in various environments. The motor's open drip-proof enclosure design and rigid base mounting type ensure reliable operation and easy installation. With a nameplate RPM of 1,770 and a service factor of 1.15, this motor provides efficient and continuous duty operation. Its high efficiency of 94.1% and CSA and UL certifications make it a reliable choice for demanding applications.
Top product features:
- Three-phase design for efficient power distribution
- Open drip-proof motor enclosure for protection from dust and moisture
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pumps and other fluid-handling equipment
- Fans and blowers for industrial processes
- Conveyors and other material-handling systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 256T, Voltage 200V AC, 60 Hz Hz, Three Phase, Full Load Amps 57.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1701-1800, CSA (LR2025), UL (E49747)
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.20
- Package Width: 17.00
- Package Height: 16.50
- Package Weight: 221.00
Product info last updated on February 25, 2026 11:15pm UTC
Category: Motors
