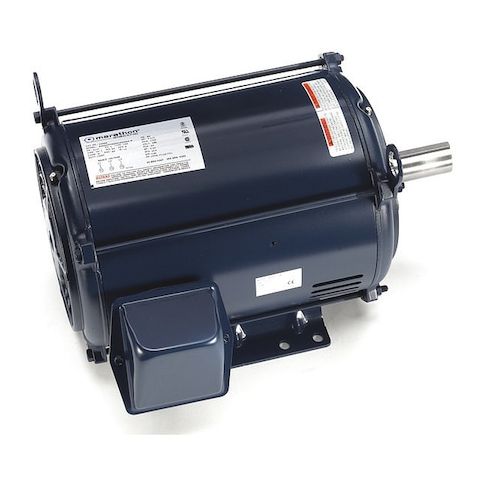

Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 200V AC Voltage, 1765 rpm Nameplate RPM MPN:213TTDBD6039
Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 200V AC Voltage, 1765 rpm Nameplate RPM
This 7 1/2 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial processes, manufacturing, and commercial use. With a robust 213T frame and 200V AC voltage, it provides reliable performance and efficiency in demanding environments. The motor's rigid base mounting and ball bearings ensure smooth operation and extended lifespan. Suitable for continuous duty, it's ideal for applications requiring high torque and power, such as conveyor systems, pumps, and compressors. Its high efficiency and durable design make it a cost-effective solution for businesses looking to optimize their operations.
Top product features:
- Three-Phase General Purpose Motor with Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings for Smooth and Quiet Operation
- Continuous Duty Capability for Reliable and Long-Term Performance
Top product applications:
- Industrial conveyor systems
- Pumping stations
- Centrifugal compressors
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1765 rpm, Frame 213T, Voltage 200V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 81.5 Percent, Continuous Duty, 1701-1800, CSA (LR2025), UL (E49747)
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.30
- Package Width: 16.00
- Package Height: 14.50
- Package Weight: 145.00
Product info last updated on February 5, 2026 10:58am UTC
Category: Motors
