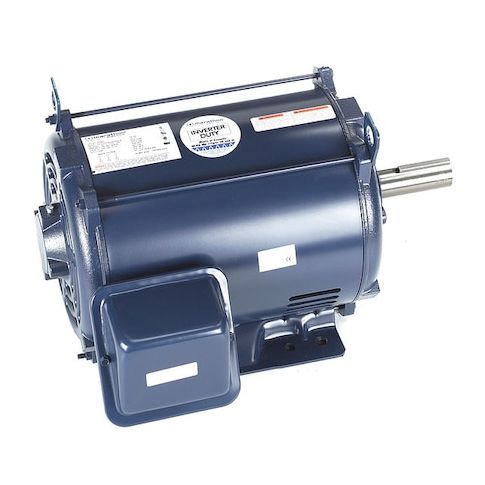

Three-Phase General Purpose Motor, 15 HP, 254T Frame, 200V AC Voltage, 1, 770 Nameplate RPM MPN:254TTDBD6039
Three-Phase General Purpose Motor, 15 HP, 254T Frame, 200V AC Voltage, 1, 770 Nameplate RPM
This reliable 15 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications. Built with a rugged steel frame and ball bearings, it can withstand demanding conditions and provide continuous duty operation. With a high efficiency rating of 91.7%, it helps reduce energy costs and minimize environmental impact. Suitable for use in a variety of industries, including manufacturing, mining, and oil and gas, this motor is ideal for applications such as pumps, fans, and conveyor systems. Its open drip-proof design and CW/CCW shaft rotation make it a versatile and convenient choice for a wide range of applications.
Top product features:
- Three-phase design allows for efficient power distribution and reduced energy losses.
- Ball bearings provide smooth and quiet motor operation.
- Open drip-proof motor enclosure design protects the motor from dust and debris.
Top product applications:
- Conveyor systems
- Industrial pumps
- Manufacturing machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 15 HP, Nameplate RPM 1,770, Frame 254T, Voltage 200V AC, 60 Hz Hz, Three Phase, Full Load Amps 42.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CSA (LR2025), UL (E49747)
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.50
- Package Width: 17.10
- Package Height: 17.20
- Package Weight: 247.00
Product info last updated on February 3, 2026 1:12am UTC
Category: Motors
