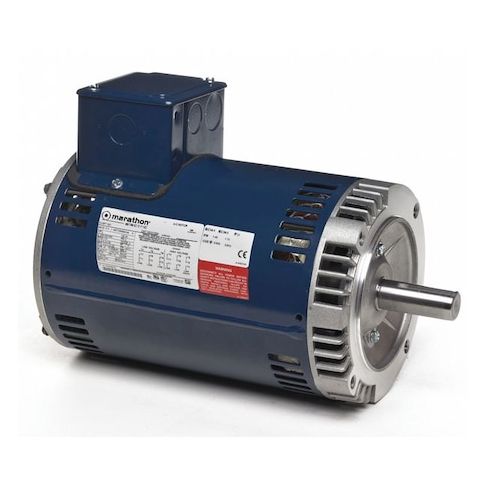

Three-Phase General Purpose Motor, 5 HP, 182TC Frame, 230/460V AC Voltage, 3500 rpm Nameplate RPM MPN:182TTDBD6004
Three-Phase General Purpose Motor, 5 HP, 182TC Frame, 230/460V AC Voltage, 3500 rpm Nameplate RPM
This 5 HP three-phase general purpose motor from Marathon is designed for a wide range of industrial and commercial applications, including pumps, fans, and conveyor systems. Its open drip-proof enclosure provides protection from dust and water, while its steel frame and ball bearings ensure durability and reliability. With a high efficiency rating of 89.5% and a service factor of 1.15, this motor is ideal for continuous duty applications where energy savings and reduced maintenance are critical. Suitable for use in environments with temperatures up to 40°C, it meets CE, CSA, and UL standards for safe and reliable operation.
Top product features:
- Three-phase operation provides power to multiple loads
- Open drip-proof motor enclosure design protects against dust and water
- Ball motor bearings reduce friction and enhance motor durability
Top product applications:
- Industrial conveyor systems
- Pumps and compressors
- Manufacturing machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 5 HP, Nameplate RPM 3500 rpm, Frame 182TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 12.4/6.2 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600, CE, CSA (LR2025), UL (E49747)
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.90
- Package Width: 14.20
- Package Height: 13.50
- Package Weight: 56.00
Product info last updated on February 14, 2026 7:23pm UTC
Category: Motors
