Close-Coupled Pump Motor, 10 HP, 1765 rpm MPN:215TTDWD16349

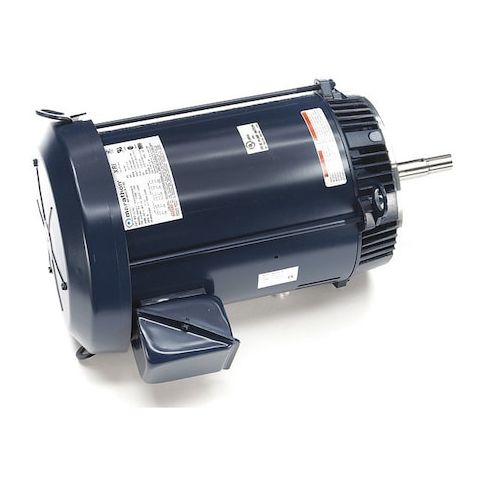

Close-Coupled Pump Motor, 10 HP, 1765 rpm
The Marathon Close-Coupled Pump Motor is a reliable and efficient solution for various industrial applications, including pump systems. This 10 HP motor operates at 1765 rpm and features a durable design with ball bearings, ensuring continuous duty cycle performance. With a compact footprint, it's ideal for installations where space is limited. The motor's inverter-rated and Class B insulation ensure smooth operation and long lifespan. Suitable for use in environments up to 40°C, this motor is perfect for applications such as water treatment, chemical processing, and HVAC systems, providing reliable performance and minimizing downtime.
Top product features:
- Close-coupled design for compact installation and reduced footprint
- Ball bearings for long-lasting motor operation and reduced maintenance
- Drip cover for protection against liquid splashes and spills
Top product applications:
- Pump
- Motor Application
- Inverter Rated
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 213JMV, Hz 60/50, Full Load Amps 26.2/13.1, Full Load Amps @ 50Hz 26.2/13.1, Height 11 3/8 in, HP 10, HP @ 50Hz 10, Includes Drip Cover, Ins. Class B, Inverter Rated Not Inverter Rated, Length Less Shaft 16 3/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 122.00
Product info last updated on February 14, 2026 10:54am UTC
Category: Motors
