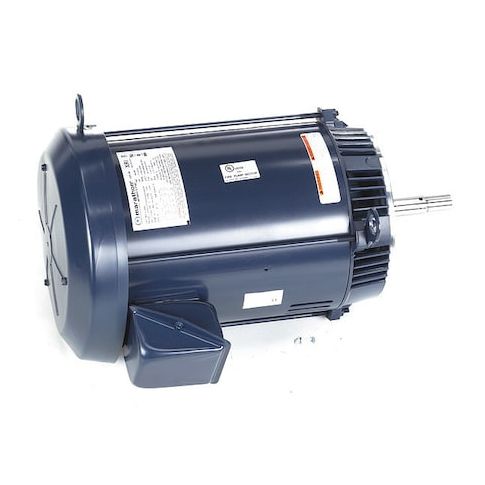

Close-Coupled Pump Motor, 7-1/2 HP MPN:213TTDWD16333
Close-Coupled Pump Motor, 7-1/2 HP
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 213JMV, Hz 60/50, Full Load Amps 20.0/10.0, Height 11 7/16 in, HP 7 1/2, Ins. Class F, Inverter Rated Not Inverter Rated, Length Less Shaft 16 3/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group NEMA Premium Efficient
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.00
- Package Width: 31.00
- Package Height: 18.00
- Package Weight: 122.00
Product info last updated on February 11, 2026 1:58pm UTC
Category: Motors
