Crop Dryer Motor, Capacitor-Start/Run, 10 HP, 230V AC, 3, 455 Nameplate RPM, 215TZ Frame MPN:215TBDW17003
Crop Dryer Motor, Capacitor-Start/Run, 10 HP, 230V AC, 3, 455 Nameplate RPM, 215TZ Frame

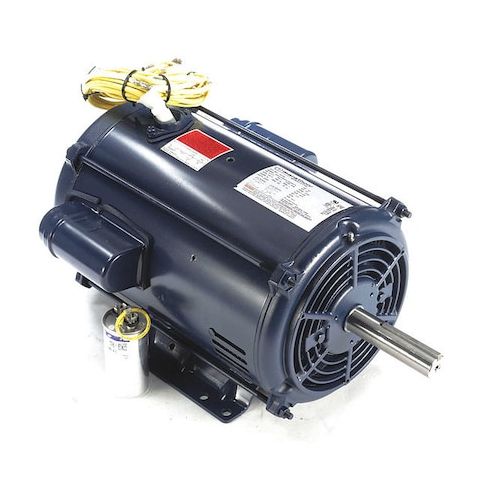

This Marathon Crop Dryer Motor is designed for demanding farm duty applications, featuring a 10 HP, 230V AC motor with a single phase, capacitor-start/run design and a high-speed nameplate RPM of 3,455. Its rugged construction ensures reliable operation in harsh environments, with a motor service factor of 1.15 and a maximum ambient temperature of 40 degrees C. Suitable for continuous duty cycles, this motor is ideal for crop drying, ventilation, and other agricultural applications where high airflow and efficiency are required. Its open drip-proof enclosure and rigid base mounting provide added protection and stability.
Top product features:
- Capacitor-start/run design for improved motor efficiency and reliability
- Single-phase motor design for use in a variety of applications
- Continuous duty cycle for uninterrupted operation in demanding environments
Top product applications:
- Crop drying
- Dairy processing
- Grain drying
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 hp HP, Nameplate RPM 3,455 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 39.5 A, 215TZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.19
- Package Width: 16.50
- Package Height: 14.00
- Package Weight: 137.00
