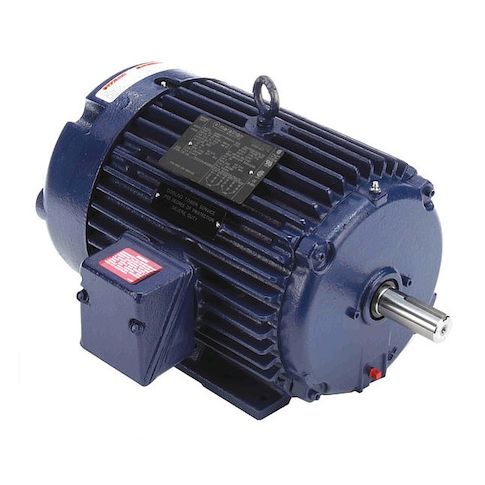

3-Phase Cooling Tower Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1, 765 Nameplate RPM MPN:213TTFCD6550
3-Phase Cooling Tower Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1, 765 Nameplate RPM
This 3-Phase Cooling Tower Motor is designed for heavy-duty applications, providing efficient and reliable cooling performance. With a 7 1/2 HP rating and 1,765 RPM nameplate speed, it's ideal for use in commercial and industrial settings, such as data centers, hospitals, and manufacturing facilities. The totally enclosed fan-cooled design ensures long motor life and minimal maintenance. Its 230/460V AC voltage rating and 1.15 service factor make it suitable for a wide range of cooling tower applications, including evaporative and dry cooling systems. Its compact design and rigid base mounting type provide easy installation and flexibility in tight spaces.
Top product features:
- Three-Phase Cooling Tower Motor
- Totally Enclosed Fan Cooled
- Ball Bearings
Top product applications:
- HVAC Systems
- Industrial Cooling Systems
- Large Commercial Buildings
Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 7 1/2 hp HP, 1,765 RPM Nameplate RPM, 213T Frame, CW/CCW Motor Shaft Rotation, 230/460V AC Voltage, 19.2/9.6 A Full Load Amps, Three Phase, 60/50 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position Horizontal/Vertical Shaft Up, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 3/8 in, Shaft Length 3 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 20.00
- Package Height: 18.00
- Package Weight: 226.00
Product info last updated on February 3, 2026 10:36am UTC
Category: Motors
