Hazardous Location Motor, 3-Phase, 10 HP MPN:215TTGCD6501
Hazardous Location Motor, 3-Phase, 10 HP

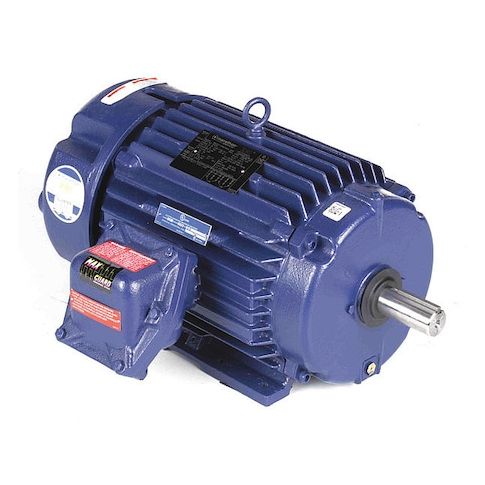

This 10 HP 3-phase hazardous location motor from Marathon is designed for use in harsh environments, meeting Class I and Class II standards for safe operation. Suitable for applications such as oil and gas, chemical processing, and pharmaceutical manufacturing, this motor's totally enclosed fan-cooled design and thermal protection ensure reliable performance in high-temperature conditions. With a service factor of 1.15 and a maximum ambient temperature of 40 degrees C, this motor is built to withstand demanding applications. Its compact design and efficient cooling system also make it an ideal choice for space-constrained facilities.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled design
- Thermal protection via T-stat
Top product applications:
- Oil and Gas Industry
- Chemical Plants
- Refineries
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 3,520 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 23.8/11.9 A, 215T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 22.00
- Package Height: 21.00
- Package Weight: 252.00
Product info last updated on February 18, 2026 6:58am UTC
Category: Motors
