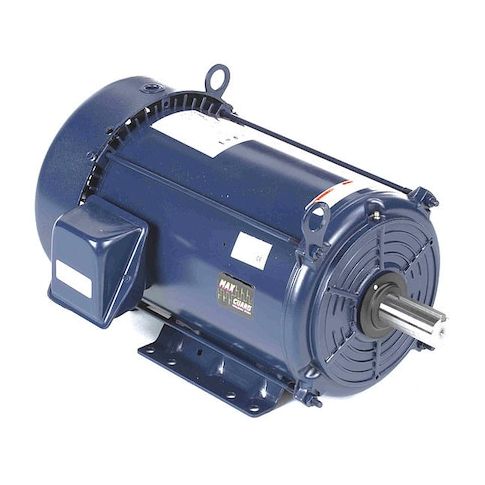

General Purpose Motor, Three Phase, 10 HP, 3525 rpm Nameplate RPM, 230/460V AC, 215T Frame MPN:215TTFBD6002
General Purpose Motor, Three Phase, 10 HP, 3525 rpm Nameplate RPM, 230/460V AC, 215T Frame
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3525 rpm, Frame 215T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 23.6/11.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 18 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.19
- Package Width: 16.50
- Package Height: 14.00
- Package Weight: 110.00
Product info last updated on February 3, 2026 2:30am UTC
Category: Motors
