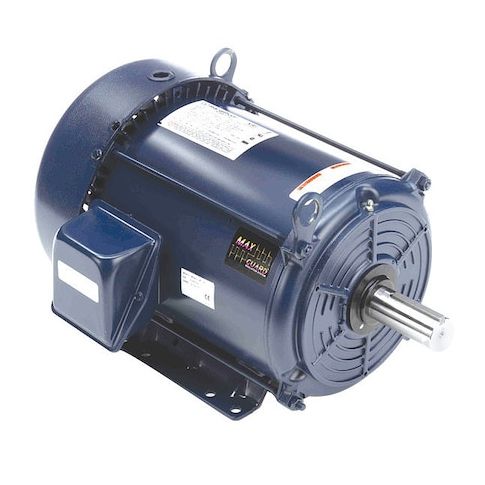

General Purpose Motor, Three Phase, 5 HP, 1170 rpm Nameplate RPM, 230/460V AC, 215T Frame MPN:215TTFBD6080
General Purpose Motor, Three Phase, 5 HP, 1170 rpm Nameplate RPM, 230/460V AC, 215T Frame
This high-performance 5 HP three-phase motor from Marathon is designed for demanding industrial applications. With a totally enclosed fan-cooled enclosure and rigid base mounting, it provides reliable operation in harsh environments. The motor's 89.5% nominal efficiency and 1.15 service factor ensure maximum productivity and efficiency. Suitable for continuous duty, it's ideal for use in manufacturing, material handling, and other heavy-duty industries. Its compact size and robust construction make it easy to install and maintain, while its CW/CCW rotation and steel frame ensure flexibility and durability. Perfect for applications requiring high torque and reliability.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pump applications
- Compressor applications
- Fans and blowers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1170 rpm, Frame 215T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 14.0/7.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 17.00
- Package Height: 15.00
- Package Weight: 135.00
Product info last updated on February 5, 2026 10:20am UTC
Category: Motors
