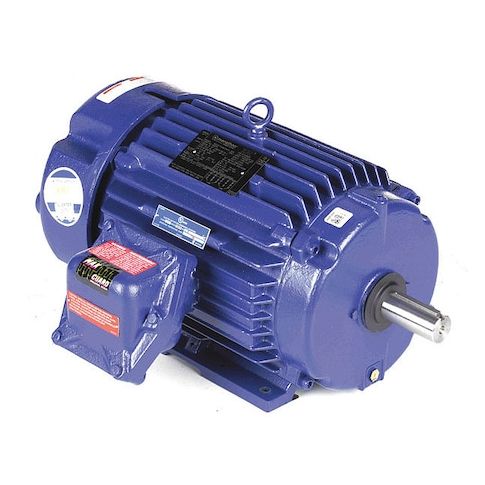

Hazardous Location Motor, 3-Phase, 7-1/2HP MPN:213TTGCD6501
Hazardous Location Motor, 3-Phase, 7-1/2HP
This 7.5 HP hazardous location motor from Marathon is a reliable and efficient solution for applications in explosive or flammable environments. Suitable for use in Class I, Class II, and Division T3B locations, it features a totally enclosed fan-cooled design and a high service factor of 1.15. With a maximum ambient temperature of 40°C and a thermal protection system, it can operate safely in challenging conditions. Ideal for use in oil and gas, chemical processing, and other industries where hazardous environments are present, this motor provides a high level of performance and reliability.
Top product features:
- Three-phase design
- Totally enclosed fan cooled motor design
- Thermal protection with T-Stat
Top product applications:
- Pumps
- Industrial equipment
- Oil and gas industry equipment
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 3,525 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 18.2/9.1 A, 213T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 20.00
- Package Height: 18.00
- Package Weight: 220.00
Product info last updated on February 2, 2026 3:49am UTC
Category: Motors
