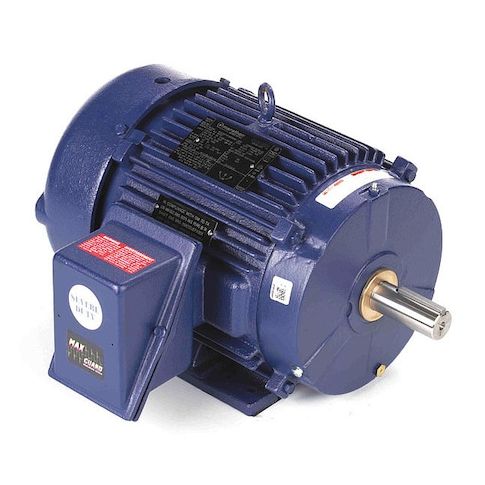

Severe Duty Motor, Three Phase, 7 1/2 hp HP, 1, 768 RPM Nameplate RPM, 460V AC, 213T Frame MPN:213THFCD9026
Severe Duty Motor, Three Phase, 7 1/2 hp HP, 1, 768 RPM Nameplate RPM, 460V AC, 213T Frame
This severe duty motor is designed for demanding industrial applications, delivering reliable performance in harsh environments. With a 7 1/2 horsepower rating and 1,768 RPM, it can handle heavy loads and continuous operation. The motor's totally enclosed fan-cooled design ensures efficient cooling and reduced maintenance. Suitable for use in a variety of industries, including manufacturing, oil and gas, and food processing, this motor provides a cost-effective solution for applications requiring high torque and durability. Its compact design and rigid base mounting make it easy to integrate into existing systems.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle Capability
Top product applications:
- Powering conveyor belts in heavy-duty manufacturing environments
- Driving pumps in water treatment facilities
- Operating compressors in oil and gas refineries
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 1,768 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 9.5 A, 213T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.10
- Package Width: 22.70
- Package Height: 18.80
- Package Weight: 222.00
Product info last updated on February 3, 2026 6:13pm UTC
Category: Motors
