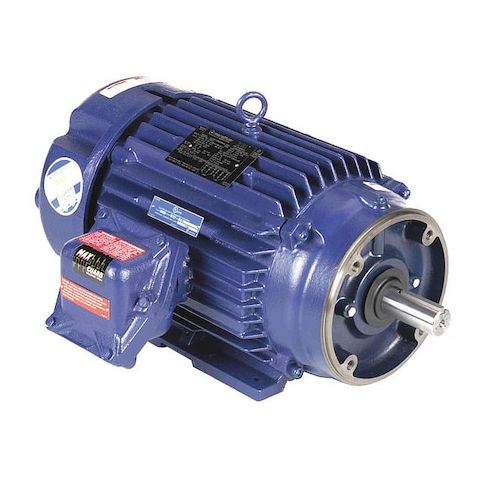

Hazardous Location Motor, 3-Phase, 7-1/2HP MPN:213TTGCD6528
Hazardous Location Motor, 3-Phase, 7-1/2HP
This 7.5 HP, three-phase hazardous location motor from Marathon is designed for use in challenging environments. Built to operate at 230V AC or 460V AC, it's suitable for applications where temperature and humidity levels are extreme. With a totally enclosed fan-cooled design, it provides reliable operation in temperatures up to 40 degrees C. The motor's thermal protection and service factor ensure efficient performance. Ideal for use in chemical processing, oil and gas, and other industries where hazardous conditions are present, this motor offers a reliable and efficient solution for heavy-duty applications.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Thermal Protection with T-Stat
Top product applications:
- Pump applications in hazardous locations, such as oil refineries or chemical plants
- High-speed fans in hazardous environments, such as paint booths or powder coating facilities
- Equipment in areas with high ambient temperatures, such as outdoor construction sites or industrial kitchens
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 19.2/9.6 A, 213TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 21.00
- Package Height: 19.00
- Package Weight: 256.00
Product info last updated on February 4, 2026 9:04am UTC
Category: Motors
