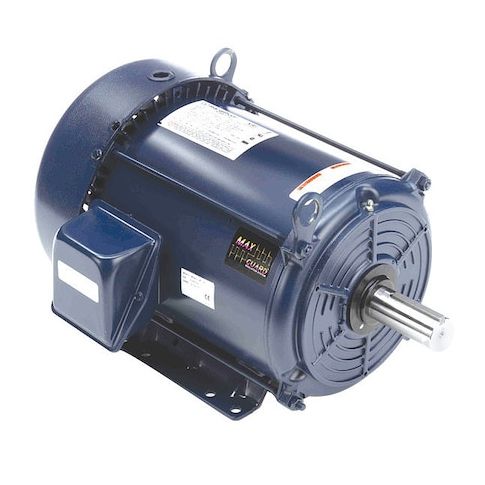

General Purpose Motor, Three Phase, 3 HP, 1175 rpm Nameplate RPM, 208-230/460V AC, 213T Frame MPN:213TTFBD6080
General Purpose Motor, Three Phase, 3 HP, 1175 rpm Nameplate RPM, 208-230/460V AC, 213T Frame
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1175 rpm, Frame 213T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 9.2-8.8/4.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.50
- Package Width: 16.00
- Package Height: 14.50
- Package Weight: 107.00
Product info last updated on March 27, 2026 2:16am UTC
Category: Motors
