Close-Coupled Pump Motor, 10 HP, 575V MPN:256TTDBD6095

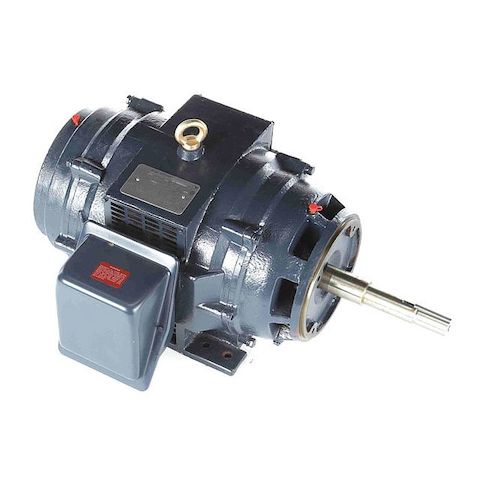

Close-Coupled Pump Motor, 10 HP, 575V
The Marathon Close-Coupled Pump Motor is a high-performance solution for demanding applications. Designed for continuous duty cycles, this 10 HP motor features a robust 3-phase design and ball bearings for extended lifespan. Its compact size and exterior conduit box location make it ideal for space-constrained installations. With an inverter rating of 10:1 variable torque and 2:1 constant torque, it provides flexible control options. Suitable for use in pump applications, this motor offers reliable operation in temperatures up to 40°C. Its durable construction and efficient design make it a reliable choice for demanding industrial environments.
Top product features:
- Close-coupled design for improved efficiency and reduced vibration
- Ball bearings for extended motor life and smooth operation
- Inverter-rated for use with variable frequency drives, allowing for flexible and energy-efficient motor control
Top product applications:
- Pump
- Motor Bearings Ball
- Motor Design 3-Phase
Close-Coupled Pump Motor, Body Dia. 11.8 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 256JP, Hz 60 Hz, Full Load Amps 10.3, Height 13 1/2 in, HP 10, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 20 1/2 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.21
- Package Width: 24.40
- Package Height: 32.67
- Package Weight: 370.00
Product info last updated on January 22, 2026 1:15pm UTC
Category: Motors
