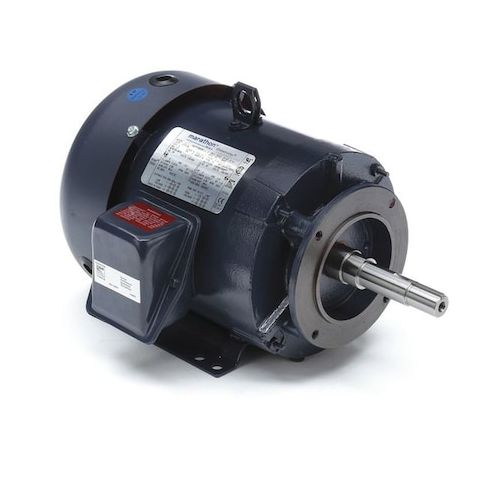

Close-Coupled Pump Motor, 8.0/4.0A, 3 HP MPN:182TTFBD6006
Close-Coupled Pump Motor, 8.0/4.0A, 3 HP
The Marathon Close-Coupled Pump Motor is a high-performance solution for demanding applications. Designed for continuous duty cycles, this 3 HP motor features a robust build and NEMA Premium Efficient design for optimal energy efficiency. Its compact design and totally enclosed fan-cooled enclosure make it ideal for use in harsh environments. Suitable for a wide range of applications, including water treatment, chemical processing, and HVAC systems, this motor provides reliable operation and long lifespan. With its inverter-rated design and high torque output, it's an excellent choice for applications requiring precise control and high performance.
Top product features:
- Totally Enclosed Fan-Cooled design for improved cooling and reduced noise
- Ball bearings for smooth and reliable motor operation
- NEMA Premium Efficient motor design for high energy efficiency and reduced energy consumption
Top product applications:
- Pump
- Motor Bearings Ball
- Motor Application Pump
Close-Coupled Pump Motor, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 182JM, Hz 60 Hz, Full Load Amps 8.2/4.1, Height 9 13/16 in, HP 3, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1, Length Less Shaft 13 1/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 16.30
- Package Height: 14.40
- Package Weight: 75.00
Product info last updated on March 15, 2026 11:27pm UTC
Category: Motors
