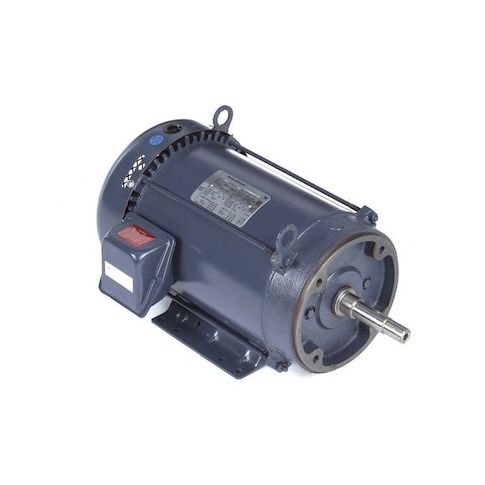

Close-Coupled Pump Motor, 1770 rpm, 10 HP MPN:215TTFBD6031
Close-Coupled Pump Motor, 1770 rpm, 10 HP
This Marathon Close-Coupled Pump Motor is a reliable and efficient solution for industrial applications. Designed for continuous duty cycles, it features a 10 HP, 3-phase motor with a premium efficiency rating. With a maximum ambient temperature of 40°C, it can operate in a variety of environments. The close-coupled design and ball bearings ensure smooth operation and extended lifespan. Suitable for pump applications, this motor offers a high power-to-weight ratio and can be used in a range of industries, including manufacturing, water treatment, and oil and gas. Its inverter-rated design also makes it compatible with variable frequency drives.
Top product features:
- Close-coupled design for compact installation
- Ball bearings for smooth and quiet operation
- NEMA Premium Efficient motor design for high efficiency and low energy consumption
Top product applications:
- Pump
- Motor Application
- Inverter Rated Motor
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JM, Hz 60 Hz, Full Load Amps 25.0/12.5, Height 11 in, HP 10, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 10:1, Length Less Shaft 17 5/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group NEMA Premium Efficient
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 250.00
Product info last updated on March 4, 2026 8:34pm UTC
Category: Motors
