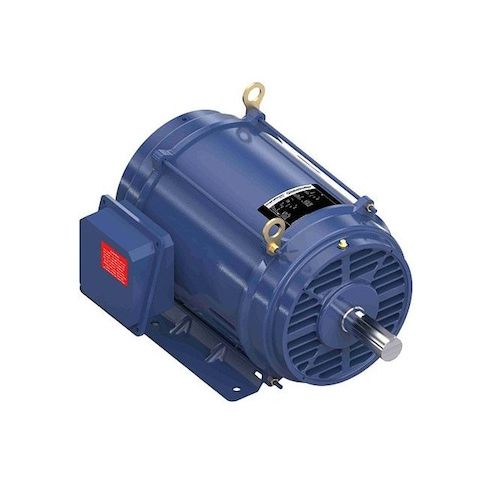

Three-Phase General Purpose Motor, 15 HP, 254T Frame, 230/460V AC Voltage, 1774 rpm Nameplate RPM MPN:254TTDBD6026
Three-Phase General Purpose Motor, 15 HP, 254T Frame, 230/460V AC Voltage, 1774 rpm Nameplate RPM
This 15 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial, commercial, and manufacturing settings. Its 254T frame and 230/460V AC voltage make it suitable for use in various environments. The motor's 1774 rpm nameplate speed and 88.5% nominal efficiency ensure reliable and efficient operation. Its open drip-proof motor enclosure design provides protection against dust and water, making it ideal for use in harsh conditions. Suitable for continuous duty, this motor is a reliable choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Three-phase operation for efficient power usage
- Open drip-proof motor enclosure design for reduced maintenance and increased safety
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 15 HP, Nameplate RPM 1774 rpm, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 37.5/18.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.60
- Package Width: 17.30
- Package Height: 17.20
- Package Weight: 259.00
Product info last updated on February 2, 2026 4:24pm UTC
Category: Motors
