Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/208-230V AC Voltage, 184T Frame MPN:184TBFW17044

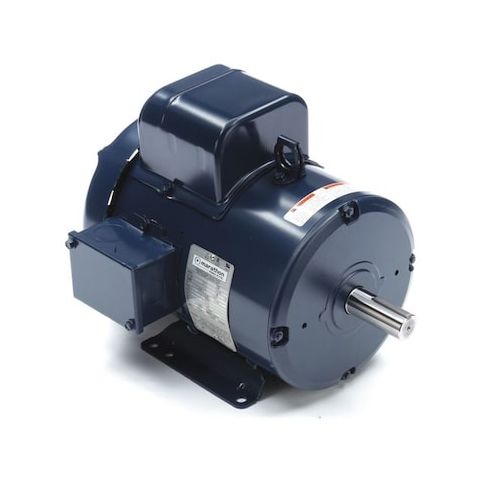

Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/208-230V AC Voltage, 184T Frame
This 3 hp general purpose motor from Marathon is a reliable and efficient solution for a wide range of applications. Designed for single-phase use, it features a capacitor-start/run design for smooth operation and long motor life. The totally enclosed fan-cooled motor provides protection from dust and moisture, making it ideal for use in harsh environments. With a maximum ambient temperature of 40°C, it can handle demanding applications. Suitable for continuous duty cycles, this motor is perfect for use in factories, warehouses, and other industrial settings where high performance and reliability are essential.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient operating environment.
- Single Phase motor design allows for operation on a single-phase electrical supply.
- Capacitor-Start/Run design enables efficient starting and running of the motor.
Top product applications:
- Industrial machinery
- Pumps
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 28.0/15.0-14.0 A, 184T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.20
- Package Width: 13.70
- Package Height: 13.80
- Package Weight: 72.05
Product info last updated on February 25, 2026 6:34am UTC
Category: Motors
