Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1762 rpm Nameplate RPM MPN:182TTFCD6026
Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1762 rpm Nameplate RPM

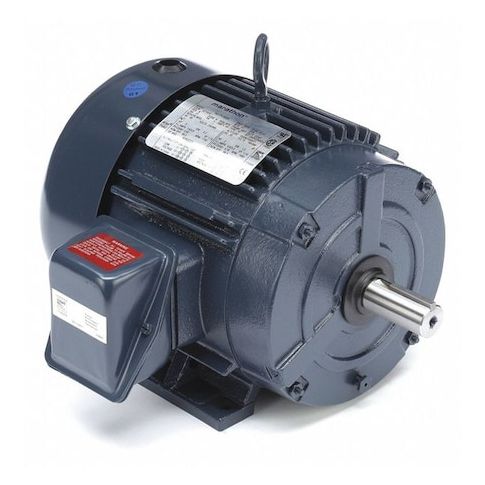

This 3 HP three-phase general purpose motor from Marathon is designed for continuous duty applications, offering a reliable and efficient solution for various industrial needs. With a nameplate RPM of 1762 and a maximum ambient temperature of 40 degrees C, this motor is suitable for use in a range of environments. Its rigid base mounting type and ball bearings ensure stable operation, while its cast iron frame provides durability. Ideal for applications such as pumps, fans, and conveyor systems, this motor offers a high level of efficiency and performance, making it a valuable addition to any industrial setup.
Top product features:
- Three-Phase General Purpose Motor, Totally Enclosed Fan Cooled Motor Enclosure Design
- Rigid Base Motor Mounting Type
- Ball Motor Bearings
Top product applications:
- Industrial Pumping Systems
- Heavy-Duty Fans and Blowers
- High-Volume Water Pumps
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1762 rpm, Frame 182T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.0/4.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 99.00
Product info last updated on April 17, 2026 5:05am UTC
Category: Motors
