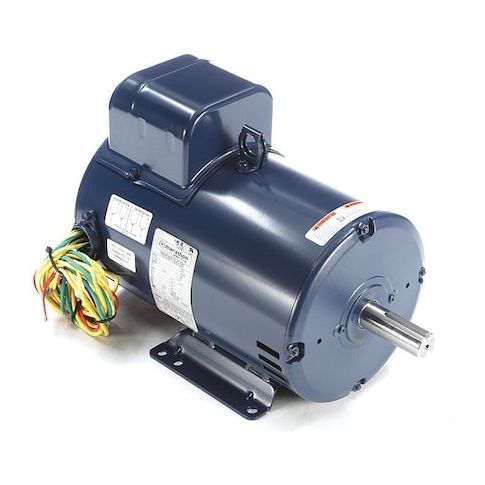

Crop Dryer Motor, Capacitor-Start, 5 HP, 230V AC, 3, 535 Nameplate RPM, 184TZ Frame MPN:184TCDW7615
Crop Dryer Motor, Capacitor-Start, 5 HP, 230V AC, 3, 535 Nameplate RPM, 184TZ Frame
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 5 hp HP, Nameplate RPM 3,535 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 27.2 A, 184TZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.4, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.50
- Package Height: 14.00
- Package Weight: 98.00
Product info last updated on January 23, 2026 7:20pm UTC
Category: Motors
