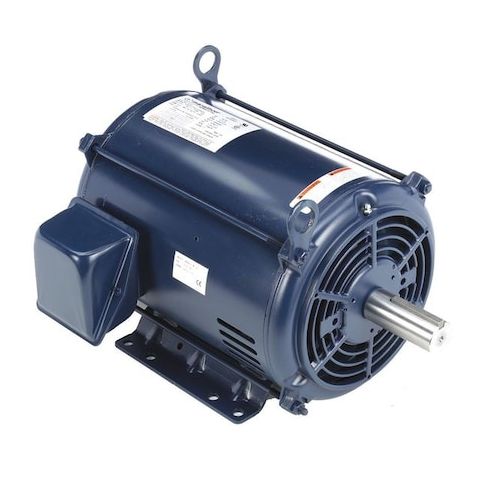

3-Phase Belt Drive Motor, 2 1/5, 5 HP, 215T Frame, 460V AC Voltage, 1, 765/1, 175 Nameplate RPM MPN:215TTDW7203
3-Phase Belt Drive Motor, 2 1/5, 5 HP, 215T Frame, 460V AC Voltage, 1, 765/1, 175 Nameplate RPM
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 2 1/5 hp, 5 hp HP, Nameplate RPM 1,765/1,175 RPM, No. of Speeds 2, Voltage 460V AC, 6.5 A Full Load Amps, 215T Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.20
- Package Width: 17.30
- Package Height: 14.90
- Package Weight: 106.00
Product info last updated on January 20, 2026 1:43am UTC
Category: Motors
