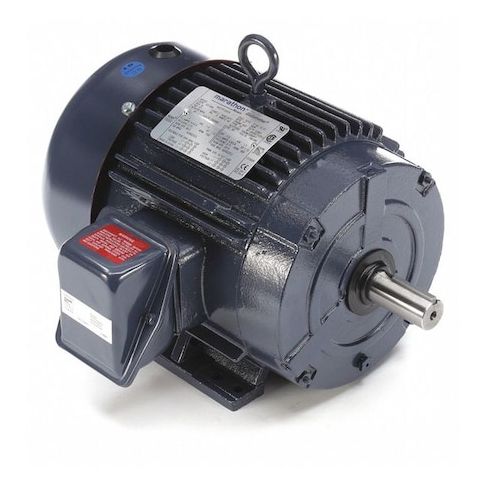

Three-Phase General Purpose Motor, 2 HP, 184T Frame, 230/460V AC Voltage, 1173 rpm Nameplate RPM MPN:184TTFCD6076
Three-Phase General Purpose Motor, 2 HP, 184T Frame, 230/460V AC Voltage, 1173 rpm Nameplate RPM
This 2 HP, 184T frame, three-phase motor is designed for general purpose use in a variety of applications. Its totally enclosed fan cooled design provides reliable operation in a range of environments, from industrial settings to commercial facilities. With a high efficiency rating of 93.6%, this motor helps reduce energy costs and minimize environmental impact. Its rigid base mounting and cast iron frame ensure durability and long lifespan. Ideal for applications such as pumps, fans, and conveyor systems, this motor is a reliable choice for continuous duty operation. It meets CSA and UL standards for safety and quality.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Nominal Efficiency 93.6 Percent
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1173 rpm, Frame 184T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 6.2/3.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.20
- Package Width: 16.10
- Package Height: 15.10
- Package Weight: 113.00
Product info last updated on February 16, 2026 4:27am UTC
Category: Motors
