Vector Motor, 5 HP, 15 ft.-lb., 230/460V MPN:184THFW7726

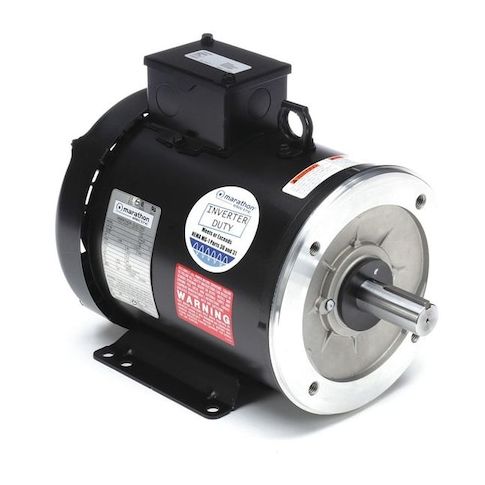

Vector Motor, 5 HP, 15 ft.-lb., 230/460V
The Marathon Vector Motor is a high-performance, three-phase motor designed for demanding applications. With a 5 HP rating and 15 ft-lb of torque, it offers efficient and reliable operation. Suitable for use in industrial settings, this motor features a wide speed range of 1,000:1 and a maximum operating frequency of 120 Hz. Its NEMA Design A rating ensures smooth and quiet operation, making it ideal for applications such as pumps, fans, and conveyor systems. With a durable design and long lifespan, the Vector Motor is a reliable choice for industries requiring high-performance, continuous-duty operation.
Top product features:
- Three-phase operation
- Nameplate RPM of 1,760
- Speed range of 1,000:1
Top product applications:
- Pumps and water treatment systems
- Compressors and air conditioning units
- Conveyors and material handling equipment
Vector Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 13.0/6.5 A, 184TC Frame, Torque 15 ft-lb, Max. Speed 4,200 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.30
- Package Width: 13.50
- Package Height: 13.40
- Package Weight: 92.00
Product info last updated on February 8, 2026 4:11am UTC
Category: Motors
