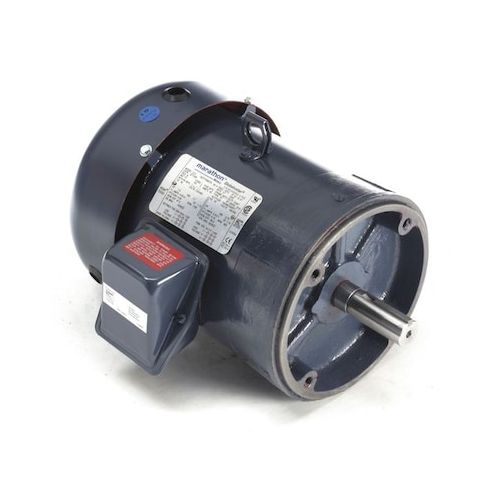

Three-Phase General Purpose Motor, 1 1/2 HP, 182TC Frame, 230/460V AC Voltage MPN:182TTFBD6079
Three-Phase General Purpose Motor, 1 1/2 HP, 182TC Frame, 230/460V AC Voltage
This 1.5 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications that require reliable and efficient performance. Its totally enclosed fan cooled design ensures optimal cooling and protection from environmental factors, making it suitable for use in a variety of industries including manufacturing, construction, and oil and gas. With a high service factor of 1.15 and ball bearings for smooth operation, this motor can handle continuous duty cycles with ease. Its compact 182TC frame makes it easy to integrate into existing systems, and its 230/460V AC voltage rating provides flexibility in installation.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and durable environment for the motor's electrical components.
- Ball Motor Bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
- CW/CCW Motor Shaft Rotation allows for flexible installation options, accommodating various mounting configurations.
Top product applications:
- Pumps and compressors
- Fans and blowers
- Conveyors and material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1175 rpm, Frame 182TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.6/2.3 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 91.00
Product info last updated on February 6, 2026 2:25pm UTC
Category: Motors
