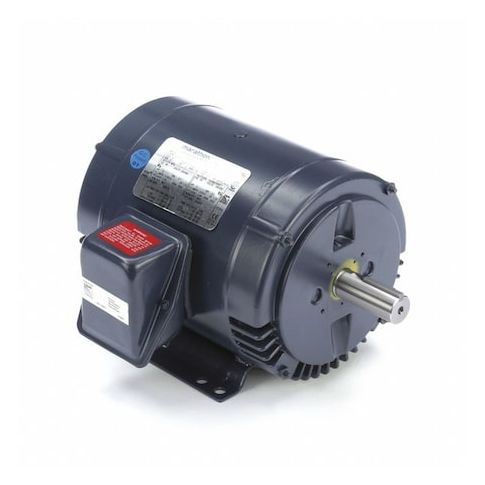

Three-Phase General Purpose Motor, 5 HP, 182T Frame, 208-230/460V AC Voltage, 3495 rpm Nameplate RPM MPN:182TTDBD6001
Three-Phase General Purpose Motor, 5 HP, 182T Frame, 208-230/460V AC Voltage, 3495 rpm Nameplate RPM
This 5 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications, offering reliable performance and efficiency. Suitable for continuous duty, it operates at a high speed of 3495 rpm, making it ideal for use in manufacturing, processing, and material handling industries. With a nameplate efficiency of 86.5%, this motor reduces energy costs and minimizes environmental impact. Its rigid base mounting and open drip-proof enclosure design ensure easy installation and maintenance. Available in a variety of voltage configurations, this motor is a versatile solution for demanding industrial applications, including conveyor systems, pumps, and machinery.
Top product features:
- Three-phase operation allows for efficient and reliable power distribution.
- Ball bearings provide long-lasting and smooth motor rotation.
- Continuous duty operation enables sustained performance under heavy loads.
Top product applications:
- Industrial Automation
- Pumping Stations
- Manufacturing Machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 5 HP, Nameplate RPM 3495 rpm, Frame 182T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 13.2/6.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.80
- Package Width: 16.00
- Package Height: 14.50
- Package Weight: 66.00
Product info last updated on February 3, 2026 7:35pm UTC
Category: Motors
