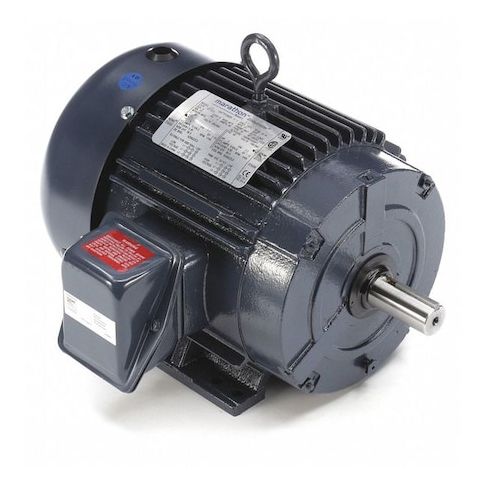

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM MPN:184TTFCD6026
This 5 HP three-phase general purpose motor from Marathon is designed for a wide range of industrial applications, including manufacturing, processing, and material handling. Its 184T frame and 230/460V AC voltage make it suitable for use in various settings, while its 1765 rpm nameplate speed provides reliable power. The motor's totally enclosed fan cooled design and rigid base mounting ensure efficient operation and easy installation. With a high efficiency rating of 89.5 percent and a service factor of 1.15, this motor is ideal for continuous duty applications, providing long-lasting performance and minimizing energy costs.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pumps
- Industrial machinery
- Conveyors
The MARATHON MOTORS - 184TTFCD6026 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is designed for use in various industrial and commercial settings where power transmission and pneumatics applications are required. It efficiently converts electrical energy into mechanical energy to operate different types of machinery across multiple sectors.
Key Features of the MARATHON MOTORS - 184TTFCD6026 General Purpose Motor:
- CC Number: The unique identifier assigned by EASA, which classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: The product is designed for continuous use under specified conditions.
- Frame: Its frame size conforms to standard specifications for compatibility and interchangeability.
- Full Load Amps: It is rated to draw a maximum current of 13.2/6.6 A under specified conditions.
- Green Certification or Other Recognition: NEMA Premium(R) Rated making it an eco-friendly choice for industry professionals.
- Inverter Rated: This motor can be used with a variable frequency drive as per the specifications provided.
- Inverter Rating: The motor's performance may vary based on the frequency set on the inverter within the specified range.
- Motor Bearings: Ball bearings are incorporated, which could contribute to smoother operation within specified load ranges
- Motor Enclosure Design: Totally enclosed fan-cooled design protects internal components from environmental factors while also determining its cooling method
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.00
- Package Width: 17.50
- Package Height: 15.00
- Package Weight: 108.20
