Severe Duty Mtr, 3-Ph, TEFC, 5 HP MPN:184TTFCD6526

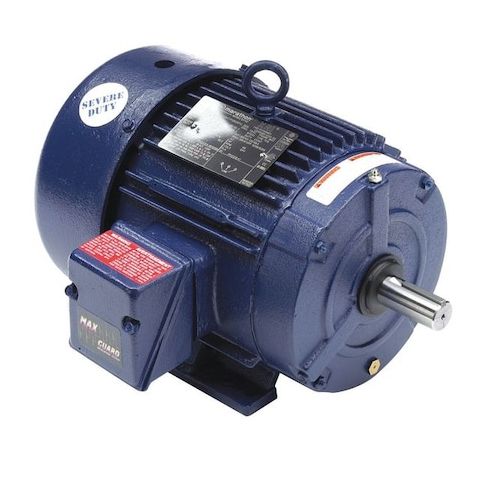

Severe Duty Mtr, 3-Ph, TEFC, 5 HP
This 5 HP severe duty motor from Marathon is designed for demanding applications in a variety of industries. Built with a totally enclosed fan cooled motor enclosure and rigid base mounting, it provides reliable operation in harsh environments. With a nameplate RPM of 1755 and a maximum ambient temperature of 40 degrees C, it's ideal for use in manufacturing, mining, and oil and gas operations. Its 78.5% nominal efficiency and 1.15 service factor make it a cost-effective solution for continuous duty applications, including pumps, fans, and compressors. Its CSA and UL certifications ensure compliance with industry standards.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled motor enclosure design
- Ball motor bearings
Top product applications:
- Manufacturing facilities
- Heavy industrial machinery
- Food processing equipment
Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1755 rpm, Frame 184T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 6.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 78.5 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.20
- Package Width: 17.30
- Package Height: 14.70
- Package Weight: 120.00
Product info last updated on February 28, 2026 4:40am UTC
Category: Motors
