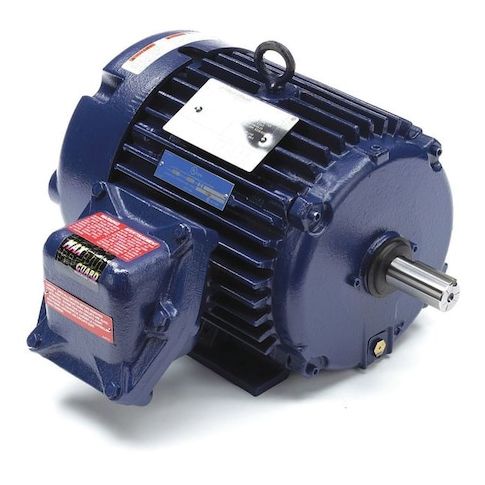

HazLoc Motor, 3 HP, 1765 RPM, 208-230/460V MPN:182TTGCD6526
HazLoc Motor, 3 HP, 1765 RPM, 208-230/460V
The HazLoc Motor from Marathon is a reliable and efficient solution for hazardous location applications. Suitable for use in Class I, Class II, and Temp. Code T3B environments, this 3 HP motor operates at 1765 RPM and can handle continuous duty cycles. Its totally enclosed fan-cooled design and thermal protection ensure optimal performance and longevity. With a service factor of 1.15, this motor can handle demanding applications. Ideal for use in industries such as oil and gas, chemical processing, and pharmaceutical manufacturing, the HazLoc Motor provides a safe and reliable solution for critical operations.
Top product features:
- Totally Enclosed Fan Cooled design for efficient heat dissipation
- Continuous Duty Cycle for uninterrupted operation in hazardous locations
- Class I, Class II, Temp. Code T3B hazardous location certification for safe use in hazardous environments
Top product applications:
- Pumps for hazardous locations such as chemical plants or oil refineries
- Fans for use in areas where flammable gases or vapors may be present
- Compressors for use in hazardous locations such as paint shops or gas stations
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 8.0/4.0 A, 182T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 16.00
- Package Height: 14.50
- Package Weight: 145.00
Product info last updated on February 3, 2026 3:07pm UTC
Category: Motors
