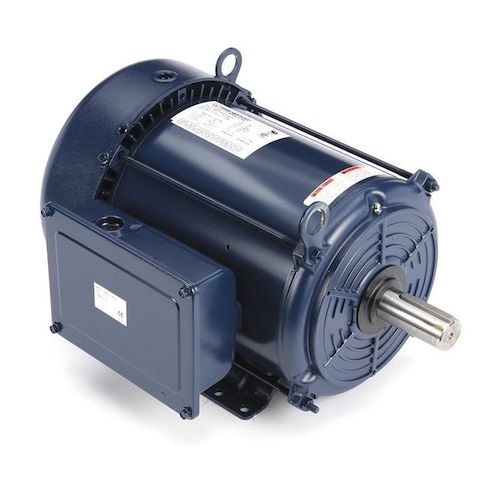

Vector Motor, 3-Phase, 3HP, 230/460V MPN:182THTS8048
Vector Motor, 3-Phase, 3HP, 230/460V
This high-performance 3HP vector motor from Marathon is designed for demanding applications where reliability and efficiency are paramount. With a wide speed range of 2,000:1 and a maximum speed of 5,400 RPM, this motor is ideal for use in industrial settings, such as manufacturing, material handling, and packaging. Its 3-phase design and 230/460V voltage rating make it suitable for a variety of applications, including conveyor systems, pumps, and fans. The motor's durable construction and continuous duty cycle ensure long-term operation and minimize downtime, making it a valuable asset for businesses that require high-performance equipment.
Top product features:
- Three-phase operation
- Speed range of 2,000:1
- NEMA Design A motor design
Top product applications:
- Conveyor systems
- Industrial pumps
- Material handling equipment
Vector Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,745, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.2/4.1 A, 182TC Frame, Torque 15 ft-lb, Max. Speed 5,400 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 118.00
Product info last updated on February 7, 2026 7:34am UTC
Category: Motors
