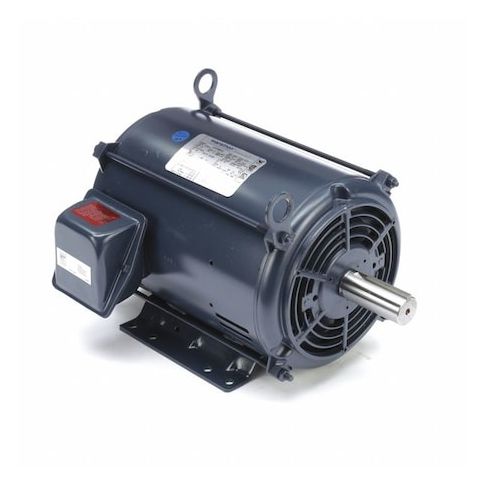

Three-Phase General Purpose Motor, 5 HP, 215T Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM MPN:215TTDBD6076
Three-Phase General Purpose Motor, 5 HP, 215T Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM
This Three-Phase General Purpose Motor is a reliable and efficient solution for various industrial applications. With a 5 HP rating and 1180 rpm nameplate speed, it's suitable for use in conveyor systems, pumps, and other machinery that requires a moderate level of power. The motor's open drip-proof enclosure design and rigid base mounting type make it easy to install and maintain. Its 91.7% nominal efficiency and continuous duty rating ensure optimal performance and longevity. Ideal for use in temperatures up to 40°C, this motor is perfect for applications in manufacturing, material handling, and other industries where reliability and efficiency are crucial.
Top product features:
- Three-phase operation for efficient power distribution
- Ball bearings for smooth and durable motor operation
- CW/CCW motor shaft rotation for versatility and flexibility
Top product applications:
- Manufacturing facilities
- Pumps and water treatment systems
- Food processing and packaging plants
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 5 HP, Nameplate RPM 1180 rpm, Frame 215T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.8/6.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 16.00
- Package Height: 15.00
- Package Weight: 142.00
Product info last updated on February 2, 2026 5:09am UTC
Category: Motors
