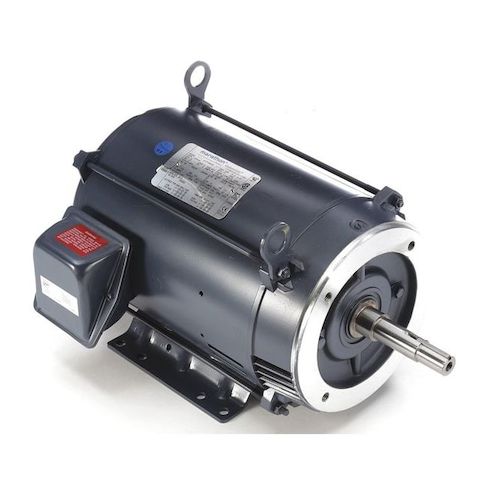

Close-Coupled Pump Motor, 3-Ph, 7-1/2 HP MPN:213TTDBD6032
Close-Coupled Pump Motor, 3-Ph, 7-1/2 HP
The Marathon Close-Coupled Pump Motor is a reliable and efficient solution for a variety of applications. Designed for continuous duty cycles, this 7.5 HP motor is ideal for use in industrial settings where pumps are a critical component. With a compact design and ball bearings for smooth operation, this motor is perfect for use in water treatment plants, chemical processing, and other applications where a high-torque motor is required. Its inverter-rated design also makes it suitable for use with variable frequency drives, providing flexibility and energy savings. Built to withstand extreme temperatures and harsh environments.
Top product features:
- Three-phase design
- Ball bearings for reduced maintenance and increased durability
- Inverter-rated for variable torque applications
Top product applications:
- Pump
- Motor Application
- Inverter Rated
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 213JM, Hz 60 Hz, Full Load Amps 19.8/9.9, Height 11 in, HP 7 1/2, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 15 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.80
- Package Width: 17.30
- Package Height: 15.00
- Package Weight: 137.00
Product info last updated on January 22, 2026 11:37am UTC
Category: Motors
