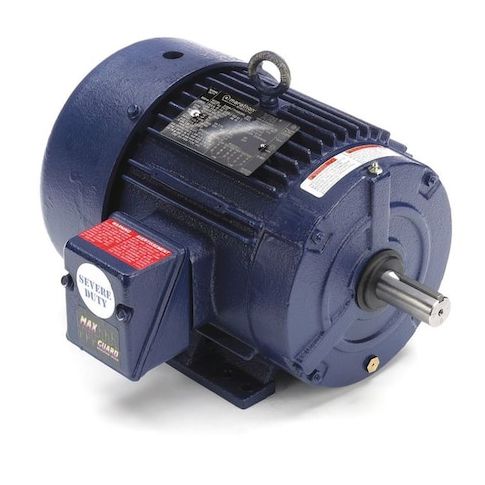

Severe Duty Mtr, 3-Ph, TEFC, 5 HP MPN:184TTFCD6810
Severe Duty Mtr, 3-Ph, TEFC, 5 HP
This severe duty motor from Marathon is designed for demanding applications, offering a 5 hp output and a robust 1.15 service factor. Suitable for use in hazardous locations, it features a totally enclosed fan-cooled (TEFC) design and a Class H insulation rating for reliable operation in extreme temperatures. With a continuous duty cycle and a 60 Hz frequency, this motor is ideal for applications in industries such as manufacturing, oil and gas, and mining. Its compact 184T frame design allows for easy installation in tight spaces, making it a versatile solution for a wide range of applications.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle
Top product applications:
- Heavy Industry
- Factory Automation
- Oil and Gas
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,510 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 12.0/6.0 A, 184T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Class I, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.82
- Package Width: 12.56
- Package Height: 9.38
- Package Weight: 127.00
Product info last updated on March 16, 2026 6:07pm UTC
Category: Motors
