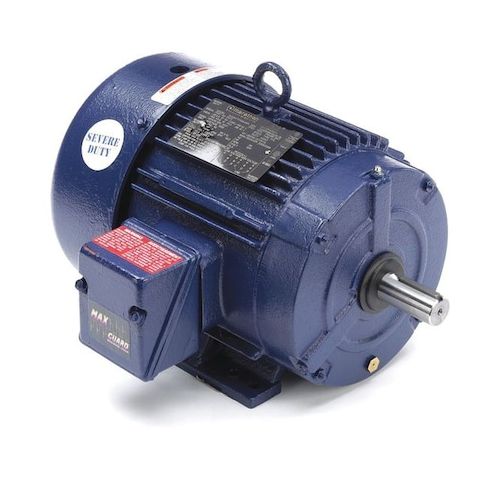

Severe Duty Mtr, 3-Ph, TEFC, 5 HP MPN:184TTFCD6844
Severe Duty Mtr, 3-Ph, TEFC, 5 HP
This severe duty motor from Marathon is designed for high-performance applications, offering a reliable and efficient solution for demanding industrial environments. With a 5 HP rating and 1,755 RPM, it's suitable for use in a variety of settings, including manufacturing, oil and gas, and food processing. The motor's three-phase design and totally enclosed fan-cooled (TEFC) enclosure ensure long-lasting performance and protection from harsh conditions. Its continuous duty cycle and 1.15 service factor make it an ideal choice for applications requiring high torque and reliability, such as conveyor systems, pumps, and compressors.
Top product features:
- Three-Phase Motor Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle
Top product applications:
- Pumps
- Conveyors
- Crushers
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 13.0/6.5 A, 184T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Class I, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.30
- Package Width: 17.20
- Package Height: 15.70
- Package Weight: 129.00
Product info last updated on February 27, 2026 8:09am UTC
Category: Motors
