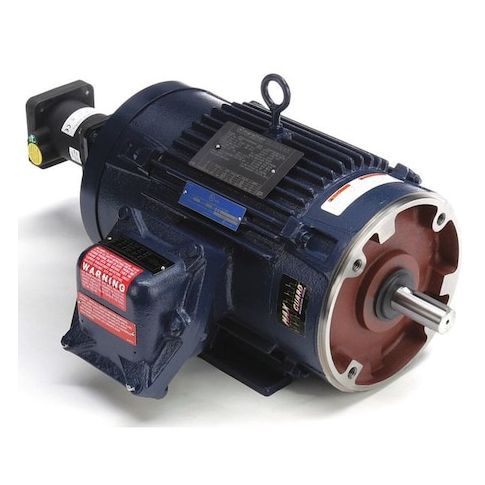

Vector Motor, 3 HP, 3600 rpm, 230/460V MPN:182THES8048
Vector Motor, 3 HP, 3600 rpm, 230/460V
This 3 HP, 3600 rpm vector motor from Marathon is a high-performance solution for demanding applications. With a 2,000:1 speed range and continuous duty cycle, it's ideal for use in industrial and manufacturing settings where high efficiency and reliability are crucial. The motor's totally enclosed non-ventilated design ensures safe operation in harsh environments, while its NEMA Design A rating meets the toughest industry standards. Suitable for applications such as conveyor systems, pumps, and fans, this motor delivers consistent performance and long lifespan, reducing downtime and maintenance costs. Its compact design also makes it easy to integrate into existing systems.
Top product features:
- Three Phase Design
- Totally Enclosed Non-Ventilated Enclosure
- Speed Range 2,000:1
Top product applications:
- Pumps
- Conveyors
- Fans
Vector Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,745, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.2/4.1 A, 182TC Frame, Max. Speed 3,600 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 117.00
Product info last updated on February 2, 2026 2:37pm UTC
Category: Motors
