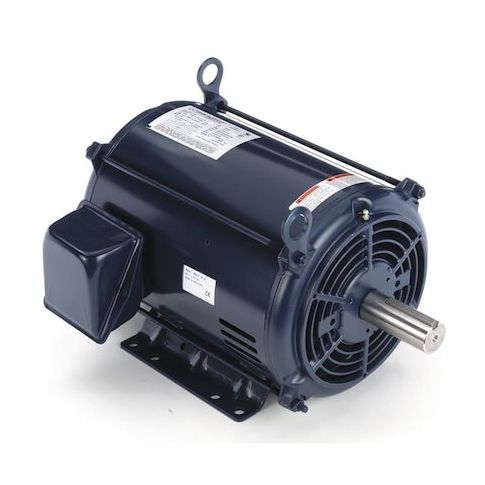

3-Phase Belt Drive Motor, 2, 5 HP, 215T Frame, 200-230V AC Voltage, 1, 770/1, 175 Nameplate RPM MPN:215TTDW7204
3-Phase Belt Drive Motor, 2, 5 HP, 215T Frame, 200-230V AC Voltage, 1, 770/1, 175 Nameplate RPM
This 3-Phase Belt Drive Motor from Marathon is a reliable and efficient solution for a variety of applications, including fans and blowers. With a 2 or 5 horsepower rating and a 215T frame, it offers a high level of power and durability. Suitable for use in a range of voltages, including 200-230V AC, it provides flexibility in installation. Its continuous duty cycle and CW/CCW rotation make it ideal for demanding applications. With a rugged open drip-proof enclosure and rigid base mounting, it withstands harsh environments and provides long-lasting performance. Perfect for industrial and commercial settings.
Top product features:
- Three-phase belt drive motor design
- Operates at 1,770/1,175 nameplate RPM
- Continuous duty cycle capability
Top product applications:
- Industrial conveyor systems
- Air conditioning and ventilation systems
- Water treatment and filtration systems
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 2 hp, 5 hp HP, Nameplate RPM 1,770/1,175 RPM, No. of Speeds 2, Voltage 200-230V AC, 14.5-14 A Full Load Amps, 215T Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 116.00
Product info last updated on February 8, 2026 2:31pm UTC
Category: Motors
