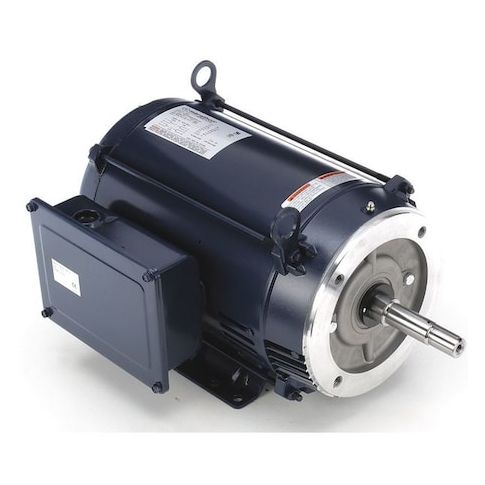

Close-Coupled Pump Motor7.5 HP, 1733 rpm MPN:215TBDW7029
Close-Coupled Pump Motor7.5 HP, 1733 rpm
This 7.5 HP close-coupled pump motor from Marathon is designed for continuous duty cycles in a variety of applications. With a high efficiency rating and open dripproof enclosure, it's well-suited for use in harsh environments. The motor's capacitor-start/run design provides reliable performance, while its ball bearings ensure smooth operation. Ideal for use in water treatment plants, chemical processing facilities, and other industrial settings, this motor is a reliable choice for pumping systems. Its compact design and standard efficient motor efficiency group make it a cost-effective solution for many applications.
Top product features:
- Close-Coupled design for easy installation and reduced space requirements
- Capacitor-Start/Run motor design for efficient starting and operation
- Ball bearings for smooth and quiet operation
Top product applications:
- Pump
- Motor Bearings Ball
- Motor Application Pump
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 215JM, Hz 60 Hz, Full Load Amps 34.5, Height 11 in, HP 7 1/2, Ins. Class F, Inverter Rated No, Length Less Shaft 15 11/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 17.00
- Package Height: 15.00
- Package Weight: 120.00
Product info last updated on March 3, 2026 5:42pm UTC
Category: Motors
