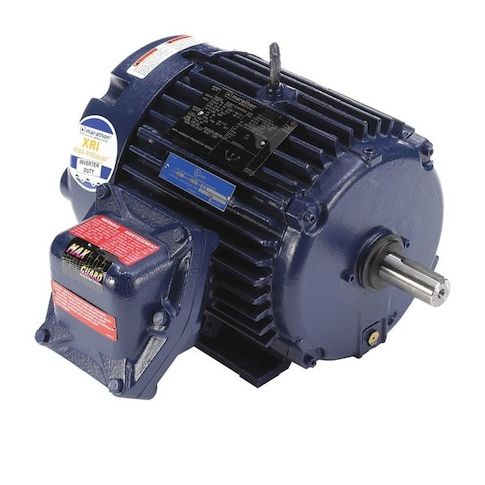

HazLoc Motor, 3 HP, 1765 RPM, 575V MPN:182TTGCD6530
HazLoc Motor, 3 HP, 1765 RPM, 575V
The HazLoc Motor from Marathon is a reliable and efficient solution for hazardous locations, offering 3 HP of power at 1765 RPM and 575V AC. Suitable for continuous duty cycles, this three-phase motor is designed for use in Class I, Class II, Temp. Code T3B environments. Its totally enclosed fan cooled design ensures optimal performance in high ambient temperatures. With a service factor of 1.15 and thermal protection, this motor provides long-lasting reliability. Ideal for applications in oil and gas, chemical, and pharmaceutical industries, the HazLoc Motor is a trusted choice for demanding environments.
Top product features:
- Three-Phase Motor Design
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Thermal Protection via T-Stat
Top product applications:
- Industrial Pump Applications
- High-Temperature Furnace Applications
- Chemical Processing Plants
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 575V AC, Full Load Amps 3.2 A, 182T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 139.00
Product info last updated on February 4, 2026 12:19pm UTC
Category: Motors
