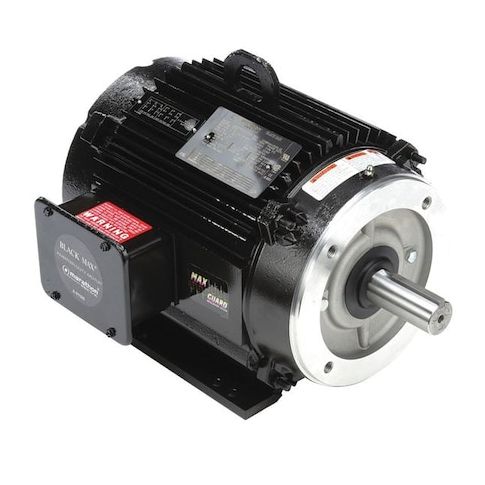

Vector Motor, 3 HP, 13.6 lb-ft, 230/460V MPN:213THTL7776
Vector Motor, 3 HP, 13.6 lb-ft, 230/460V
The Marathon Vector Motor is a high-performance solution for demanding applications, delivering 3 HP and 13.6 lb-ft of torque at 1,160 RPM. Suitable for use in 230/460V three-phase systems, this motor excels in environments with high ambient temperatures up to 104°F. Its continuous duty cycle and NEMA Design A rating make it ideal for industrial applications, including manufacturing, material handling, and processing. By providing a reliable and efficient power source, the Marathon Vector Motor helps increase productivity and reduce downtime, making it an excellent choice for industries requiring high-speed and high-torque performance.
Top product features:
- Three Phase Design
- Continuous Duty Cycle
- Torque Output of 13.6 lb-ft
Top product applications:
- Pump applications, such as for water or chemical handling, due to the motor's high torque and continuous duty cycle
- Machine tools, such as lathes or milling machines, where high speed and torque are required
- Conveyors and other material handling equipment, where high torque and reliability are necessary
Vector Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,160, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 9.4/4.7 A, 213TC Frame, Torque 13.6 ft-lb, Max. Speed 4,200 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.19
- Package Width: 16.50
- Package Height: 14.00
- Package Weight: 118.00
Product info last updated on February 7, 2026 6:27pm UTC
Category: Motors
