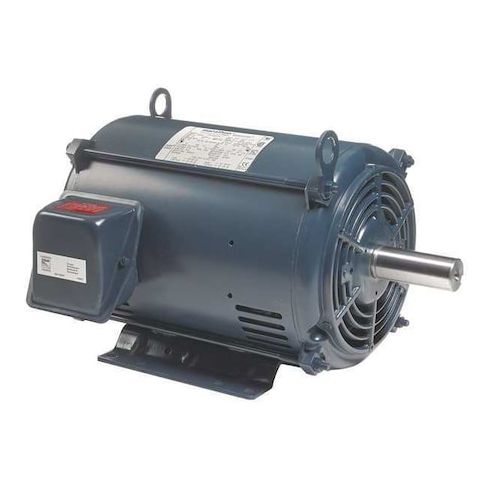

Three-Phase General Purpose Motor, 2 HP, 184T Frame, 208-230/460V AC Voltage, 1175 rpm Nameplate RPM MPN:184TTDBD6076
Three-Phase General Purpose Motor, 2 HP, 184T Frame, 208-230/460V AC Voltage, 1175 rpm Nameplate RPM
This 2 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial processes, commercial facilities, and manufacturing operations. With a robust frame and rigid base mounting, it provides reliable and efficient operation in demanding environments. The motor's high efficiency and continuous duty rating make it an ideal choice for applications requiring consistent performance. Suitable for use in areas with ambient temperatures up to 40°C, this motor is also CSA and UL certified for added assurance of quality and safety. Perfect for applications such as pumps, fans, and conveyor systems.
Top product features:
- Three-phase design for efficient power distribution
- Open drip proof motor enclosure for protection against dust and moisture
- Ball bearings for smooth and quiet operation
Top product applications:
- Industrial Pumping Systems
- Factory Automation Machinery
- Material Handling Equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1175 rpm, Frame 184T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 6.4/3.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 1,101-1,200, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.50
- Package Height: 14.00
- Package Weight: 82.00
Product info last updated on January 23, 2026 7:13am UTC
Category: Motors
