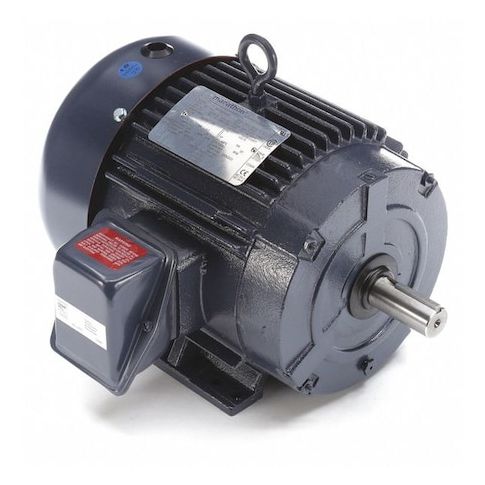

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 575V AC Voltage, 1765 rpm Nameplate RPM MPN:184TTFCD6030
Three-Phase General Purpose Motor, 5 HP, 184T Frame, 575V AC Voltage, 1765 rpm Nameplate RPM
This 5 HP, 184T frame, three-phase general purpose motor from Marathon is designed for a wide range of industrial applications. With a nameplate RPM of 1765, it provides reliable performance in continuous duty operations. Its totally enclosed fan cooled design ensures efficient cooling and reduced maintenance. The motor's high efficiency of 94.1 percent reduces energy costs and environmental impact. Suitable for applications such as conveyor systems, pumps, and fans, this motor offers a durable and cost-effective solution for industries like manufacturing, mining, and oil and gas. Its cast iron frame and ball bearings provide long-lasting durability.
Top product features:
- Three-Phase Operation: The motor is designed to operate on three-phase power, providing efficient and reliable performance.
- Totally Enclosed Fan Cooled Design: The motor features a totally enclosed fan cooled design, which helps to protect the motor from dust and debris and promotes efficient cooling.
- Ball Bearings: The motor uses ball bearings, which provide smooth and quiet operation, reducing wear and tear on the motor and increasing its lifespan.
Top product applications:
- Pumps
- Industrial machinery
- Fans
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1765 rpm, Frame 184T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 16 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.60
- Package Width: 16.10
- Package Height: 16.00
- Package Weight: 115.00
Product info last updated on March 21, 2026 5:58am UTC
Category: Motors
