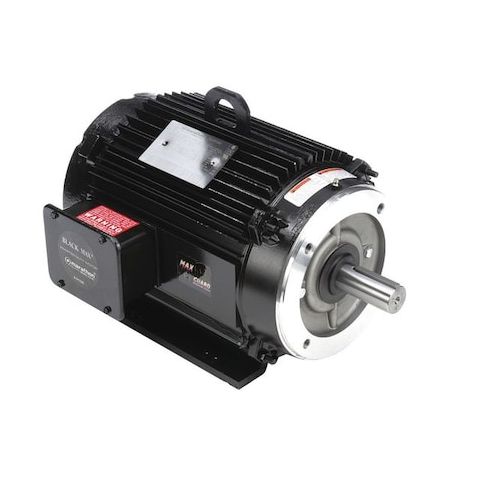

Vector Motor, 7-1/2 HP, 22.3 lb-ft, 575V MPN:213THTL7736
Vector Motor, 7-1/2 HP, 22.3 lb-ft, 575V
The Marathon Vector Motor is a reliable and efficient solution for applications requiring high torque and continuous operation. With a 7-1/2 HP rating and 22.3 lb-ft of torque, this three-phase motor is suitable for demanding industrial use. Its 1,765 nameplate RPM and 4,200 max speed make it ideal for applications such as conveyor systems, pumps, and fans. The motor's continuous duty cycle and NEMA Design A rating ensure reliable performance in a wide range of environments. With a compact design and durable construction, this motor is a great choice for industries seeking a high-performance solution.
Top product features:
- Three-phase operation
- Continuous duty cycle
- Torque output of 22.3 ft-lb
Top product applications:
- Pumps and other continuous duty applications
- Conveyor systems and other high torque applications
- Power tools and machinery
Vector Motor, Three Phase, Motor Design 3-Phase, 7 1/2 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 575V AC, Full Load Amps 8.4 A, 213TC Frame, Torque 22.3 ft-lb, Max. Speed 4,200 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.19
- Package Width: 16.50
- Package Height: 14.00
- Package Weight: 146.00
