Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 230/460V AC Voltage, 3530 rpm Nameplate RPM MPN:182TTFBD6004
Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 230/460V AC Voltage, 3530 rpm Nameplate RPM

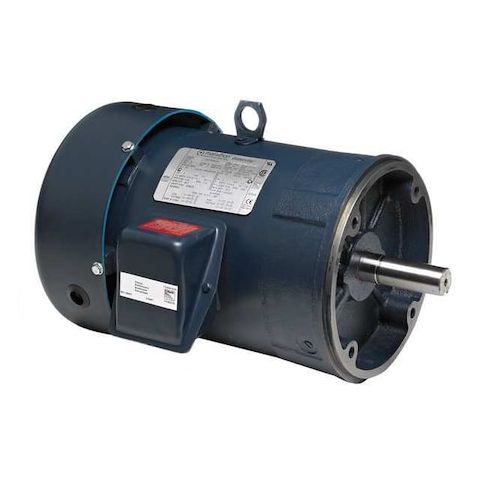

This 3 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial and commercial use. With a totally enclosed fan cooled motor enclosure and ball bearings, it provides reliable operation and long lifespan. The motor's 86.5% nominal efficiency and 1.15 service factor make it suitable for continuous duty applications. Its compact 182TC frame and CW/CCW motor shaft rotation offer flexibility in installation and use. Ideal for applications such as pumps, fans, and conveyor systems, this motor delivers high performance and efficiency in a durable and reliable package.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled design for reliable operation in harsh environments
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Pump applications such as water, oil, or chemical pumps
- Fans and blowers for industrial ventilation systems
- Conveyors and material handling systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3530 rpm, Frame 182TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.2/4.1 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.70
- Package Width: 16.00
- Package Height: 15.00
- Package Weight: 89.00
Product info last updated on February 2, 2026 6:39pm UTC
Category: Motors
