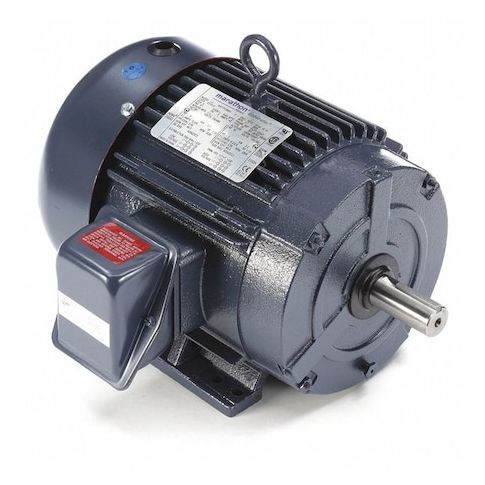

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 3525 rpm Nameplate RPM MPN:184TTFCD6001
Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 3525 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3525 rpm, Frame 184T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12.4/6.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 14.50
- Package Height: 17.50
- Package Weight: 103.00
Product info last updated on February 12, 2026 7:36am UTC
Category: Motors
